BathScapes Standard Vanity Construction

You have the option of going wall to wall with our Standard Vanity Design. You can create the ideal bathroom vanity with Wellborn Cabinet's Premier, Estate, and Select Series of premium cabinets. The Frameless - Aspire Series BathScapes Standard Construction is another option we provide. Choose your preferred door style and finish from a variety of options to bring your dream bathroom to life.
Wellborn Cabinet, Inc. BathScapes Standard Vanity is the Construction to create your Perfect Bathroom Vanity
  • Offer individual style with everyday luxury
  • Extensive selection of stains, stains with glazes, paints, paints with glaze, and finish technique options.
  • Matching Decorative Mirrors, Linen Cabinets, Medicine Cabinets, Lighting, and More.
  • Modern, Transitional, Traditional, and Classic Styles
  • A Vast Amount of Door Styles, Species and Finish Combinations
  • Selection of decorative glass door cabinets for you to choose from.
  • ColorInspire paint option available on Maple and Wellcore MDF cabinetry in Premier, Estate, or Aspire Luxe Series
  • Lifetime limited warranty.

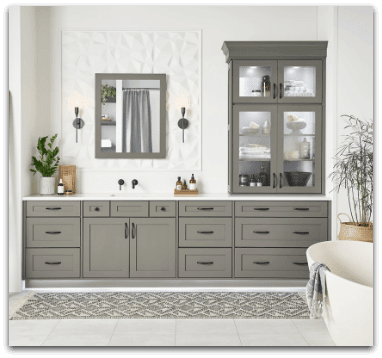

P87 BA1

Select Series Cabinet Construction - Standard & All Plywood Construction

Standard Construction

P88 SE1
Select Standard Construction Top

½” Wood grain laminated furniture board top
Select Standard Construction Hanging Rail

11/16” x 3½” Wood grain laminated fiberboard hanging rails
Select Standard Construction Hinges

Doors have six-way adjustable WellLine Concealed hinges
Select Standard Construction Back

⅛” Wood grain laminated MDF back
Select Standard Construction Shelves

3/4" Wood grain laminated furniture board adjustable shelves with edge banding; WellLock Shelf Clips
Select Standard Construction Hanging Rail

11/16” x 3½” Wood grain laminated fiberboard hanging rails
Select Standard Construction Bottom

½” Wood grain laminated furniture board bottom
Select Standard Construction End Panel

½” Natural maple wood grain laminated furniture board end panels finished on top and bottom edges*
Select Standard Construction I-Beam

½” x 3” I-Beam furniture board support dadoed into front, back and side
Select Standard Construction Hanging Rail

11/16” x 3½” Wood grain laminated fiberboard hanging rails
Select Standard Construction End Panel

½” Natural maple wood grain laminated furniture board end panels*
Select Standard Construction Drawer

3/4" Drawer Front.

3/4" Wood grain laminated furniture board drawer sides, tenoned to accept 1/2" sub-front and back.

Epoxy coated captive self-closing drawer slides (drawer has a 75 lb. weight capacity)

Upgrades available. See Wellborn Specification Catalog for more information.
Select Standard Construction Interior

Interior is wood grain laminate
Select Standard Construction Shelves

3/4" Wood grain laminated furniture board adjustable half depth shelves with edge banding; dual locking WellLock Shelf Clips
Select Standard Construction Back

1/8" Wood grain printed MDF back
Select Standard Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Select Standard Construction Bottom

1/2" Wood grain laminated furniture board bottom (Solid wood braces on 36" wide and larger cabinets)
Select Standard Construction Toe Kick

4 1/2"H x 3 3/8"D Toe kick cut-out, 1/2" unfinished furniture board toe kick extends to cabinet floor for captive construction
Select Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood face frames; mortised and tenoned, glued and stapled
Select Standard Construction End Panel

1/2" Natural maple wood grain laminated furniture board end panels*

All Plywood Construction

(Optional Upgrade)

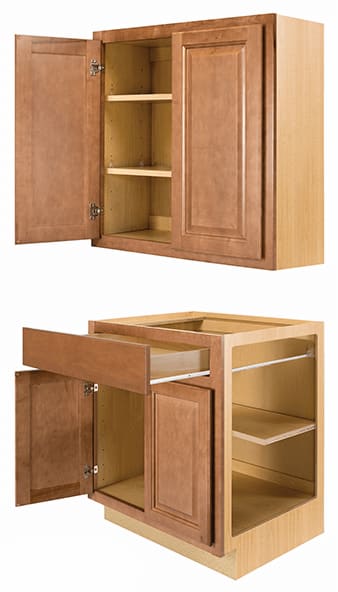

P89 SE1
Select All Plywood Construction Top

½” Wood grain laminated plywood top
Select All Plywood Construction Hanging Rail

3/4" x 3 1/2" Laminated solid hardwood or plywood hanging rails
Select All Plywood Construction Hinge

Doors have six-way adjustable WellLine concealed hinges
Select All Plywood Construction Back

3/16" Wood grain laminated plywood back
Select All Plywood Construction Shelves

3/4" Laminated plywood adjustable shelves with edge banding and WellLock Shelf Clips
Select All Plywood Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Select All Plywood Construction

1/2" Wood grain laminated plywood bottom
Select All Plywood Construction End Panel

1/2" Unfinished plywood end panels with laminate interior (FCE and MFE options available)
Select All Plywood Construction I-Beam

1/2" x 3" I-Beam plywood support dadoed into front, back and side
Select All Plywood Hanging Rails

3/4" x 3 1/2" Wood grain laminated solid hardwood or plywood hanging rails
Select All Plywood Construction Drawer

5/8" plywood dovetail drawer in a natural finish with laminated plywood drawer bottom, undermount soft close drawer slides with a 75 lb. weight capacity. Exposed dovetail joints are unfinished.
Select All Plywood Constructiion Interior

Interior is natural maple wood grain laminate
Select All Plywood Construction Shelves

3/4" Laminated plywood adjustable half depth shelves with edge banding; dual locking WellLock Shelf Clips
Select All Plywood Construction Back

3/16" Wood grain laminate plywood back
Select All Plywood Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Select All Plywood Construction

1/2" Wood grain laminated plywood bottom (solid wood brace on 36" wide and larger cabinets)
Select All Plywood Construction Toe Kick

4 1/2"H x 3 3/8"D Toe kick cut-out, 1/2" unfinished furniture board toe kick extends to cabinet floor for captive construction
Select All Plywood Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood face framed; mortised and tenoned, glued and stapled
Select All Plywood Construction End Panels

1/2" Unfinished plywood end panels with laminated interior (FCE and MFE options available)

Premier Series Cabinet Construction - Standard and All Plywood Construction

Standard Construction

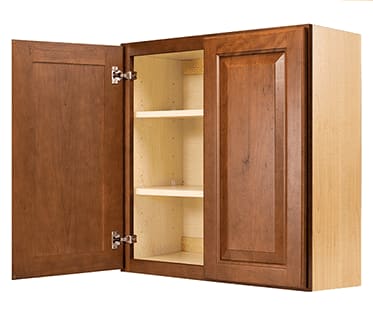

standard cabinet constructionP44 PR2
Premier Standard Construction Top

1/2" Wood grain laminated furniture board top
Premier Standard Construction Hanging Rail

11/16" x 3 1/2" Wood grain laminated fiberboard hanging rails
Premier Standard Construction Hinges

Doors have six-way adjustable, smooth close, WellLine concealed hinges
Premier All Plywood Construction Back

3/16" Wood grain laminated plywood back
Premier Standard Construction Shelves

3/4" wood grain laminated furniture board adjustable shelves with edge banding; WellLock Shelf Clips
Premier Standard Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Premier Standard Construction Bottom

1/2" Wood grain laminated furniture board bottom
Premier Standard Construction I-Beam

1/2" x 3" I-Beam furniture board support dadoed into front, back and side
Premier Standard Construction Hanging Rail

11/16" x 3 1/2" Wood grain laminated fiberboard hanging rails
Premier Standard Construction Drawer

5/8" Solid hardwood drawer in a natural finish with laminated 3/16" plywood drawer bottom, dovetail construction and full extension undermount drawer slides featuring soft close.
Premier Standard Construction Interior

Interior is a natural maple wood grain laminate*
Premier Standard Construction Shelves

3/4" Wood grain laminated furniture board adjustable shelves with edge banding; duel locking WellLock Shelf Clips
Premier Standard Construction Back

1/8" Wood grain printed MDF back
Premier Standard Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Premier Standard Construction Bottom

1/2" Wood grain laminated furniture board bottom (solid wood brace on 36" wide and larger cabinets)
Premier Standard Construction Toe Kick

4 1/2"H x 3 3/8"D Toe kick cut out, 1/2" unfinished furniture board toe kick extends to cabinet floor for captive construction
Premier Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried, solid wood face frames; mortised and tenoned, glued and stapled
Premier Standard Construction End Panel

1/2" Natural maple wood grain laminated furniture board end panels
All Plywood Cabinet Construction
(Optional Upgrade)

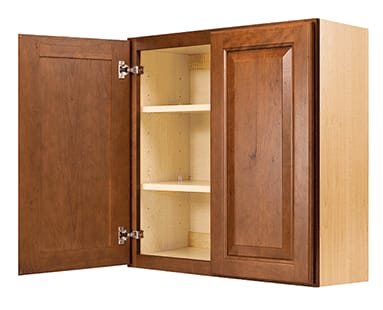

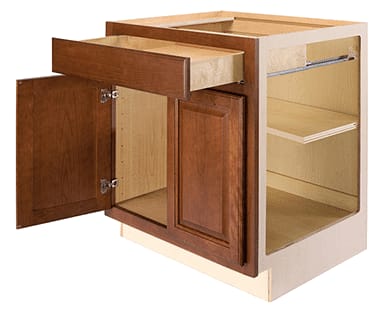

plywood cabinet constructionP45 PR1
Premier All Plywood Construction Top

1/2" Wood grain laminated plywood top
Premier All Plywood Construction Hanging Rail

3/4" x 3 1/2" Laminated solid hardwood or plywood hanging rails
Premier All Plywood Construction Hinges

doors have 6-way adjustable, smooth close, WellLine concealed hinges
Premier All Plywood Construction Back

3/16" Wood grain laminated plywood back
Premier All Plywood Construction Shelves

3/4" Laminated plywood adjustable shelves with edge banding; WellLock Shelf Clips
Premier All Plywood Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Premier All Plywood Construction Bottom

1/2" Wood grain laminated plywood bottom
Premier All Plywood Construction I-Beam

1/2" x 3" I-Beam plywood support dadoed into front, back and side
Premier All Plywood Construction Hanging Rail

3/4" x 3 1/2" Wood grain laminated solid hardwood or plywood hanging rails
Premier All Plywood Construction Drawer

5/8" Solid hardwood drawer in a natural finish with laminated 3/16" plywood drawer bottom, dovetail construction and full extension undermount drawer slides featuring soft close.
Premier All Plywood Construction Interior

Interior is natural maple wood grain laminated plywood
Premier All Plywood Construction Shelves

3/4" Laminated plywood adjustable half depth shelves with edge banding; dual locking WellLock Shelf Clips
Premier All Plywood Construction Back

3/16" Wood grain laminate plywood back
Premier All Plywood Construction Hanging Rail

Hanging rail dadoed to receive cabinet floor
Premier All Plywood Construction Bottom

1/2" Wood grain laminated plywood bottom (solid wood brace on 36" wide and larger cabinets)
Premier All Plywood Construction Toe Kick

4 1/2"H x 3 3/8"D Toe kick cut out, 1/2" unfinished plywood toe kick extends to cabinet floor for captive construction
Premier All Plywood Construction Face Frame

3/4" x 1 3/4" Kiln-dried, solid wood face frames; mortised and tenoned, glued and stapled
Premier All Plywood Construction End Panel

1/2" Unfinished plywood end panels with laminated interior (FCE and MFE options available)

Estate Series Cabinet Construction

P39 WA1
Estate Standard Construction Top

1/2" Natural finished plywood veneer tops
Estate Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood face frames
Estate Standard Construction Hinges

Doors have six-way adjustable, smooth close, WellLine concealed hinges
Estate Standard Construction Back

1/2" Natural finished plywood veneer back
Estate Standard Construction End Panel

1/2" Plywood end panels with unfinished exterior and natural finished interior
Estate Standard Construction Interior

Interior is natural finished plywood veneer
Estate Standard Construction Shelves

3/4" Natural finished plywood adjustable shelves with edge banding; decorative chrome shelf supports
Estate Standard Construction Bottom

1/2" Natural finished plywood veneer Bottom
P40 BA1
Estate Standard Construction I-Beam

1/2" x 3" I-Beam plywood support dadoed into front, back and side
Estate Standard Construction Interior

Interior is natural finished plywood veneer
Estate Standard Construction Drawer

5/8" Solid hardwood drawer in a natural finish with a 3/16" natural finished maple veneer drawer bottom, dovetail construction and full extension drawer slides featuring soft close.
Estate Standard Construction Shelves

3/4" Natural finished plywood adjustable, full depth shelves with edge banding; decorative chrome shelf supports
Estate Standard Construction Back

1/2" Natural finished plywood veneer back
Estate Standard Construction Bottom

1/2" Natural finished plywood veneer bottom
Estate Standard Construction End Panel

1/2" Plywood end panels with unfinished exterior and natural finished interior
Estate Standard Construction Face Frame

3/4" x 1 3/4" Kiln-dried solid wood face frames

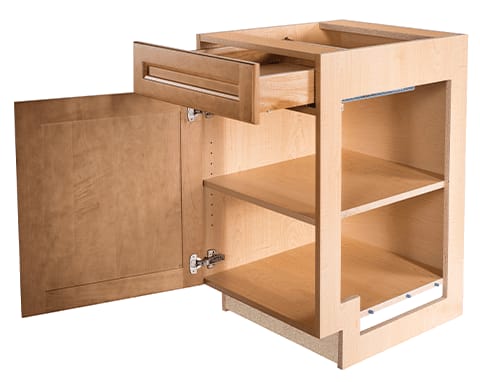

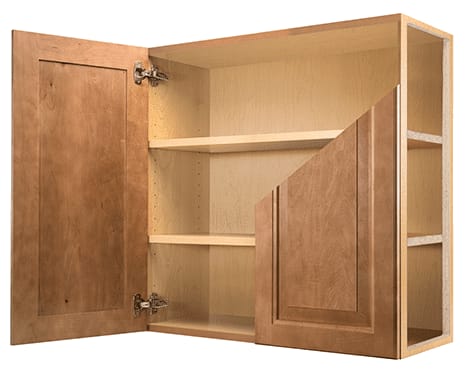

Aspire Series Cabinet Construction

Wood Door Collection Standard
Cabinet Construction
full accent frameless cabinetry
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
full accent frameless cabinetry
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Front Rails

3/4" x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish.
Drawer Box

5/8" Thick solid natural hardwood drawer sides, front and back with dovetail construction.

Drawer Bottom

3/16" Thick natural maple laminated plywood drawer bottom.

Drawer Slides

Full extension undermount drawer slides featuring soft close.
Back

3/16" Thick printed MDF hardboard in natural maple (with options fro white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4" H Unfinished furniture board. 3 3/8"D x 4 1/2"H Toe kick cut out.

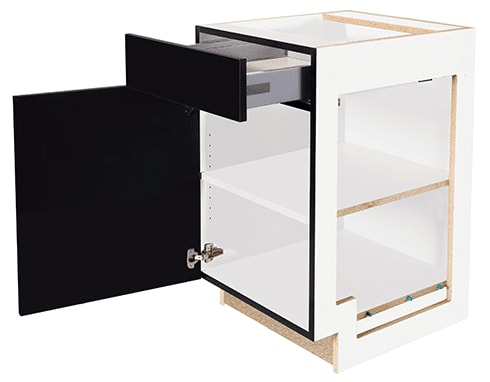

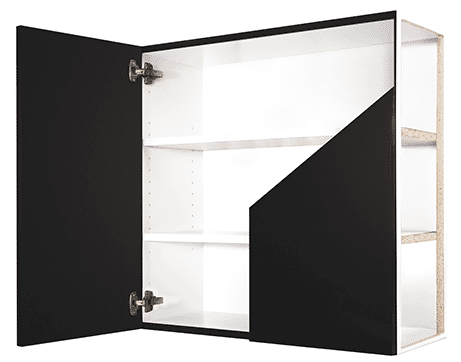

Brilliant Door Collection Standard
Cabinet Construction
full access cabinetry
Tops and Bottoms

3/4" Thick thermofused melamine laminated furniture board in white (with options for natural maple or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in white (with options for natural maple or gray). Hanging Rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick white (with options for natural maple or gray thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused white (with options for natural maple or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
full access cabinetry
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Front Rails

3/4"x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish
Deluxe Metal Drawer Box

A double walled, gray, contoured metal sided drawer.

Drawer Bottom

Drawer bottoms and backs will be 5/8" melamine that matches the chosen interior color.

Drawer Slides

Full extension undermount drawer slides featuring soft close
Back

3/16" Thick printed MDF hardboard in white (with options for natural maple or gray). Hanging Rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Shelves

3/4" Thick thermofused white (with options for natural maple or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick white (with options for natural maple or gray thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4"H Unfinished furniture board. 3 3/8"D x 4 1/2"H toe kick cut out.

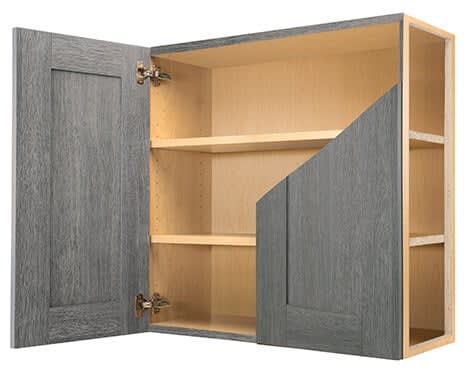

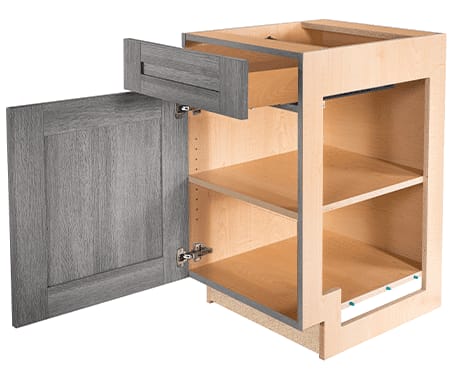

Regal Door Collection Standard
Cabinet Construction
full access cabinetry
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in natural maple (with options fro white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
full access cabinetry
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Front Rails

3/4" x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish.
Drawer Box

5/8" Thick solid natural hardwood drawer sides, front and back with dovetail construction.

Drawer Bottom

3/16" Thick natural maple laminated plywood drawer bottom.

Drawer Slides

Full extension undermount drawer slides featuring soft close.
Back

3/16" Thick printed MDF hardboard in natural maple (with options fro white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4" H Unfinished furniture board. 3 3/8"D x 4 1/2"H Toe kick cut out.
Back to the Top
