Elegant Bath Cabinet Construction

Elegant Bath is a pre-designed collection of full furniture suites that include all end panels and fronts with pre-added feet and base designs. Coordinate your design with pre-configured suites from modern, transitional, traditional, and classic styles.
Elegant Bath is an Extensive Selection of Coordinated Designer Furniture Vanity Suites
  • Offers individual style with everyday luxury
  • Semi-custom options for more design flexibility.
  • Extensive selection of stains and paints with glaze and finish technique options.
  • Traditional overlay, full overlay, and inset door styles.
  • Standard all wood cabinet construction.
  • Dovetail solid hardwood drawers with full extension soft close slides.
  • Lifetime limited warranty.
  • Furniture, modern, transitional, traditional and classic style suites.
  • Matching decorative mirrors, linen cabinets, medicine cabinets, lighting and more.
  • A vast amount of Door styles, species, and finish combinations.
  • ColorInspire paint option available on maple and MDF cabinetry

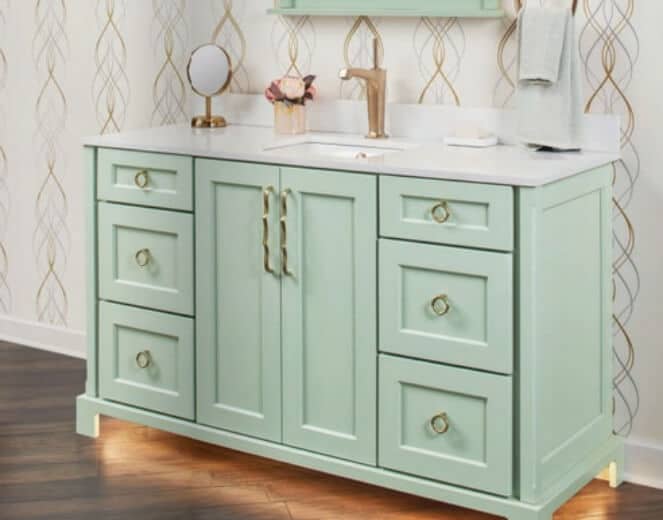

P43 ES1

Designer Suite - Estate Series Construction

Base
P76 DE1
Base Cabinet I-Beam Support

1/2" I-Beam plywood support dadoed into front, back and side
Base Cabinet Backs

1/2" Natural Finished plywood veneer back. Cabinet backs are glued and stapled into end panels, tops and bottoms.
Base Cabinet End Panels

3/4" Flush plywood end panels with finished exterior and natural finished veneer interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves
Base Cabinet Face Frames:
3/4" Thick Kiln-dried solid wood face frames. Width of frame varies based on individual suite characteristics. Overlay and non-beaded face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints and deaded face frames use pocket screws. Inset frames available beaded or non-beaded except where specified.
Base Cabinet Drawers

5/8" Solid hardwood drawer in a natural finish with a veneer plywood drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.
Base Cabinet Hinges

Overlay (standard) & Inset (optional) Concealed hinge - Six-way adjustable, satin nickel finished clip-on concealed hinge design with a smooth close feature and door stop.

Inset (Optional)
Barral Hinge - 4 way adjustable available in 3 finishes and includes coordination magnetic catches
Base Cabinet Tops & Bottoms

3/4" natural finished plywood veneer tops (Corner only) and bottoms. a dado joint, glue and staples are used to attach the top.
Drawer Details
P78 DE1
tall wall mount cabinet construction
Tall Cabinet Tops & Bottoms

3/4" Natural finished plywood veneer tops and bottoms. A dado joint, glue and staples are used to attach the top
Tall Cabinet Backs

1/2" Natural finished plywood veneer back. Cabinet backs are glued and stapled into end panels, tops and bottoms
Tall Cabinet End Panels

3/4" Flush plywood end panels with finished exterior and natural finished veneer interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves
Tall Cabinet Face Frames

3/4" Thick kiln-dried solid wood face frames. Width of frame varies based on individual suite characteristics. Overlay and non-beaded face frame joints are precisely aligned with blind mortice and tenon, glued and stapled at all joints and beaded face frames use pocket screws. Inset frames available beaded or non-beaded except where specified.
Wall Cabinet Adjustable Shelves

3/4" Natural finished plywood shelves with wood grain edge banding. The shelves are resistant to water and household chemicals. The cabinet sides are drilled for decorative chrome shelf supports which are adjustable at 64mm increments.
Tall Cabinet Hinges

Overlay (standard) & Inset (optional)
Concealed Hinge - six-way adjustable, satin nickel finished concealed hinge design with a smooth close feature and door stop.

Inset (optional)
Varrel Hinge - four-way adjustable available in 2 finishes and includes coordinating magnetic catches.
Tall Cabinet Drawer

5/8" Solid hardwood drawer in a natural finish with a veneer plywood drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.

Designer Vanity Suites - Premier Series Construction

Base
P79 DE1
Base Cabinet I-Beam Support

1/2" I-Beam plywood support dadoed into front, back and side
Base Cabinet Top Hanging Rail

3/4" x 3 1/2" Laminated solid hardwood or plywood hanging rail
Base Cabinet Backs

3/16" Wood grain laminated plywood back. Cabinet backs are glued and stapled into end panels, top and bottom hanging rail.
Base Cabinet End Panels

3/4" Flush plywood end panels with finished exterior and laminated interior. End panels are resistant to house hold chemicals and are machined to accept tops, bottoms and shelves.
Base Cabinet Face Frames

3/4" Thick Kiln-dried solid wood face frames. Width of frame varies based on individual suite characteristics. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
Drawers

5/8" Solid hardwood drawer in a natural finish with a laminated plywood drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.
Hinges

Concealed Hinge (CH) 6-way adjustable, satin nickel finished concealed hinge design with smooth close feature.
Tops & Bottoms

1/2" Wood grain laminated plywood veneer tops (corner only) and bottoms. A dado joint, glue and staples are used to attach the top.
Bottom Hanging Rail

3/4" Plywood hanging rail dadoed to receive cabinet floor
Drawer Details
P81 DE1

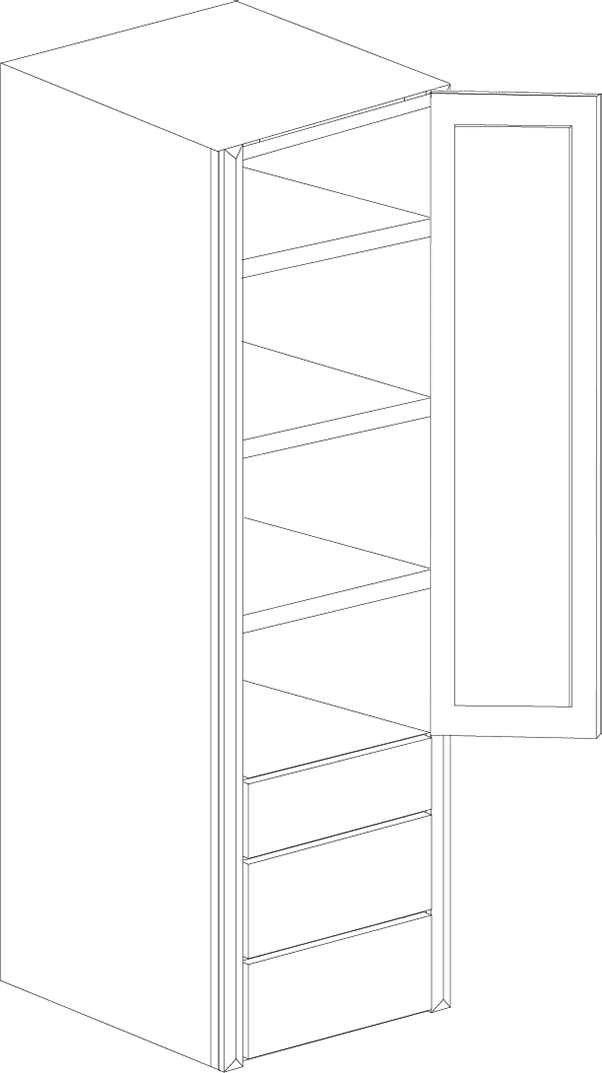

Tall
tall wall mount cabinet construction
Tops and Bottoms

1/2" Wood grain laminated plywood veneer tops and bottoms. A dado joint, glue and staples are used to attach the top.
Backs

3/16" Wood grain laminated plywood back. Cabinet backs are glued and stapled into end panels, tops and bottoms.
End Panels

3/4" Flush plywood end panels with finished exterior and laminated interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms, and shelves.
Face Frames

3/4" Thick kiln-dried solid wood face frames. Width of frame varies based on individual suite characteristics. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
Adjustable Shelves

3/4" laminated plywood shelves with wood grain edge banding. The shelves are Resistant to water and house hold chemicals. The cabinet sides are drilled for dual locking WellLock Shelf Clips which are adjustable at 64mm increments.
Hinges

Concealed Hinge (CH) 6-way adjustable, satin nickel finished concealed hinge design with smooth close feature.
Drawers

5/8" Solid hardware drawer in a natural finish with a laminated plywood drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.

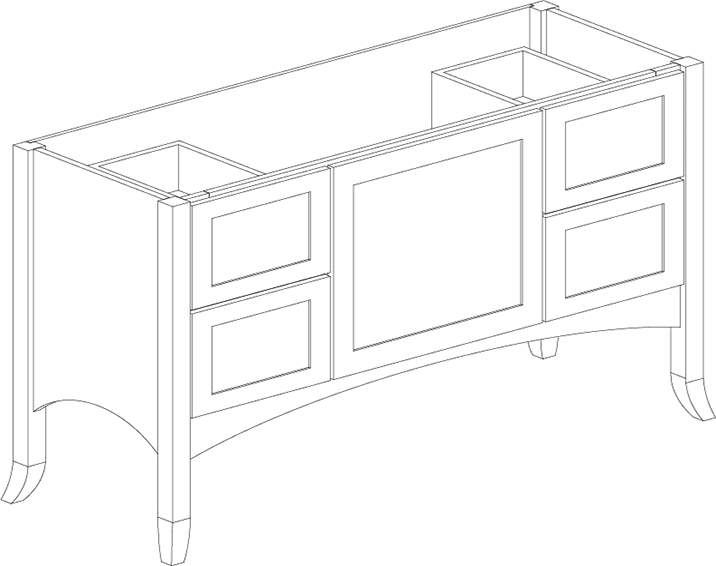

Furniture Vanity Suites - Estate Series Construction

P82 FU1
Interior is natural finished veneer
5/8" Solid hardwood drawer in a natural finish with veneer plywood drawer bottom, dovetail construction and full extension undermount drawer slides featuring soft close
1/2" Plywood back
3/4" x 1 3/4" Kiln-dried, solid wood face frames; mortised and tenoned, glued and stapled
3/4" x 3 1/2" Solid wood center stile
1/2"Plywood bottom
3/4" Matching finished end
