Wall Mount Vanity Cabinet Construction

Wall Mount Vanities, also called floating vanities, give the impression of the vanity floating in midair and let the floor and wall decorations shine alongside them. Our Wall Mount Vanities will not only complement but also fit any design aesthetic.
Wellborn Cabinet, Inc. Wall Mount Vanity cabinet construction combines fashionable design elements with our Quality Cabinetry
  • Offer individual style with everyday luxury
  • Extensive Selection of Stains and Paints with Glaze and Finish Technique Options
  • Matching Decorative Mirrors, Linen Cabinets, Medicine Cabinets, Lighting, and More.
  • Modern, Transitional, Traditional, and Classic Styles
  • A Vast Amount of Door Styles, Species and Finish Combinations
  • Selection of decorative glass door cabinets for you to choose from.
  • ColorInspire paint option available on Maple and Wellcore MDF cabinetry in Premier, Estate, or Aspire Luxe Series
  • Lifetime limited warranty.

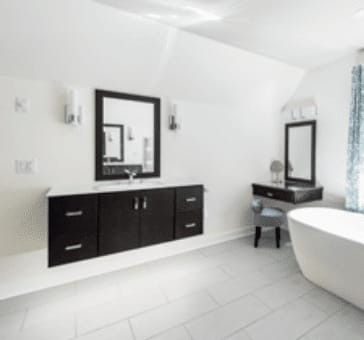

P104 W1

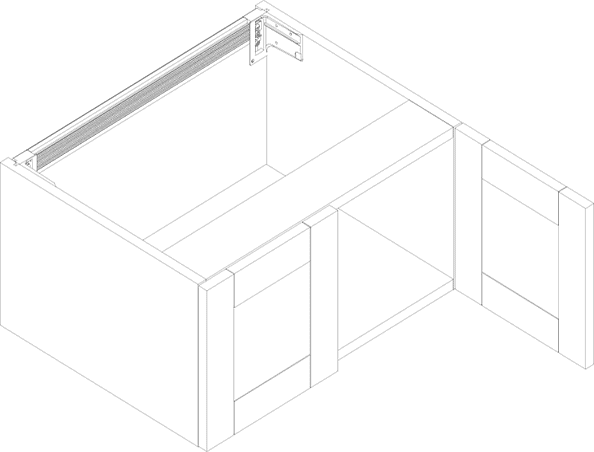

Wall Mount Vanity Suites - Premier Series Construction

wall mount construction
Backs

3/4" Wood grain laminated plywood back. Cabinet backs are glued, stapled and grooved into end panels, tops and bottoms.
Hanging Brackets (under)

Internal metal hanging brackets are attached to end panels and back for securing to wall.

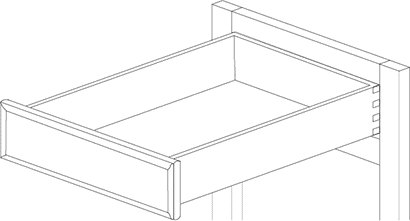

Drawers

5/8" Solid hardwood drawer in a natural finish with a 3/16" natural finished maple veneer drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.
Bottoms

3/4" Wood grain laminated plywood tops and bottoms. A dado joint, glue and staples are used to attach the top.
Hinges

Concealed Hinge (CH) 6-way adjustable, satin nickel finished concealed hinge design with a smooth close feature.
Face Frames

3/4" x 1 3/4" Kiln-dried solid wood face frames. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
End Panels

3/4" Flush plywood end panels with finished exterior and laminated interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves.
P107 P1

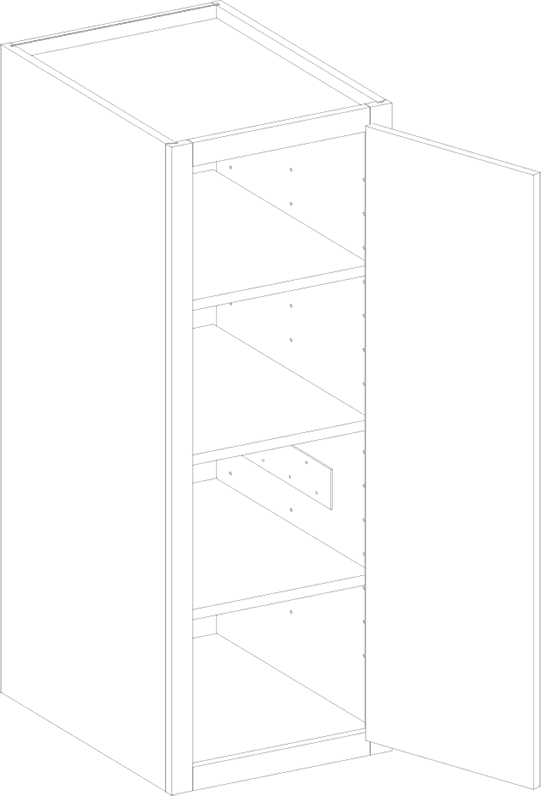

tall wall mount cabinet construction
Backs

3/4" Wood grain laminated plywood back. Cabinet backs are glued and stapled into end panels, tops and bottoms.
Hanging Bracket

Internal metal hanging brackets are attached to end panels and back for securing to wall.
Adjustable Shelves

3/4" Wood grain laminated plywood shelves with wood grain edge banding. The shelves are resistant to water and household chemicals. The cabinet sides are drilled for decorative chrome shelf supports which are adjustable.
Hinges

Concealed Hinge (CH) 6-way adjustable, satin nickel finished concealed hinge design with a smooth close feature.
Tops and Bottoms

3/4" Wood grain laminated plywood tops and bottoms. A dado joint, glue and staples are used to attach the top.
Face Frames

3/4" x 1 3/4" Kiln-dried solid wood face frames. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
End Panels

3/4" Flush plywood end panels with finished exterior and laminated interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves.

Wall Mount Vanity Suites - Estate Series Construction

P108 E1
Backs

3/4" Natural finished plywood veneer back. Cabinet backs are glued, stapled and grooved into end panels, tops and bottoms.
Hanging Bracket

Internal metal hanging brackets are attached to end panels and back for securing to wall.
Drawers

5/8" Solid hardwood drawer in a natural finish with a 3/16" natural finished maple veneer drawer bottom, dovetail construction and full extension drawer slides featuring soft close. The soft close feature allows for a smooth quiet drawer that prevents rebounding and keeps items from shifting. The drawer slides have a dynamic load capacity of 90 lbs.
Bottoms

3/4" Natural finished plywood veneer tops and bottoms. A dado joint, glue and staples are used to attach the top.
Hinges

Concealed Hinges (CH) 6-way adjustable, satin nickel finished concealed hinge design with a smooth close feature.
Face Frames

3/4" x 1 3/4" Kiln-dried solid wood face frames. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
End Panels

3/4" Flush Plywood end panels with finished exterior and natural finished veneer interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves.
P110 E1
tall wall mount cabinet construction
Backs

3/4" Natural finished plywood veneer back. Cabinet backs are glued and stapled into end panels, tops and bottoms.
Hanging Bracket

Internal metal hanging brackets are attached to end panels and back for securing to wall.
Adjustable Shelves

3/4" Natural finished plywood shelves with wood grain edge banding. The shelves are resistant to water and household chemicals. The cabinet sides are drilled for decorative chrome shelf supports which are adjustable.
Hinges

Concealed Hinge (CH) 6-way adjustable, satin nickel finished concealed hinge design with a smooth close feature.
Tops and Bottoms

3/4" Natural finished plywood veneer tops and bottoms. A dado joint, glue and staples are used to attach the top.
Face Frames

3/4" x 1 3/4" Kiln-dried solid wood face frames. All face frame joints are precisely aligned with blind mortise and tenon, glued and stapled at all joints.
End Panels

3/4" Flush plywood end panels with finished exterior and natural finished veneer interior. End panels are resistant to household chemicals and are machined to accept tops, bottoms and shelves.

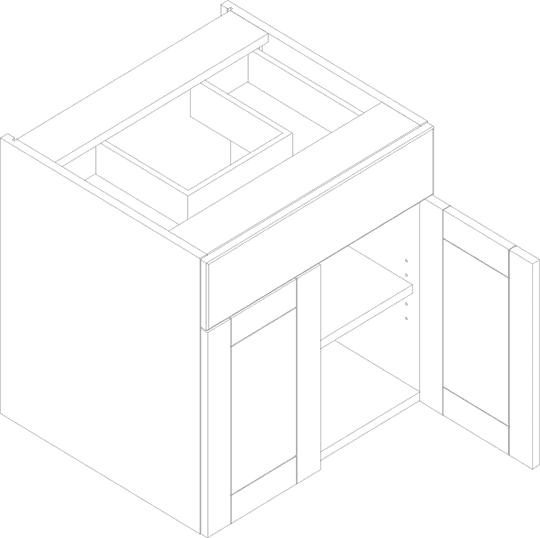

Wall Mount Vanity Suites - Aspire Luxe Series Construction

wall mount cabinet construction
Wall Mount Vanities contain internal hanging brackets which are attached to the end panels and back for securing to wall.
wall mount cabinet construction
