Aspire - Luxe Series Cabinet Construction

Aspire Cabinetry is full access frameless cabinetry and by design inevitably offers a sleek, clean minimalistic design. With an innovative and leading edge door style selection, designs can be created from a traditional to transitional and contemporary appeal.
Aspire Cabinetry is an Innovative and Leading Edge Style Product Line
  • Offers Full Access Frameless Cabinetry
  • Door Style Selections of Wood; Medium Density Fiberboard; Heavy Textured Melamine; Embossed Melamine; High Gloss and Matte Designer Laminates
  • Cabinet Interiors Selection of White, Gray, and Natural Maple Laminate
  • Numerous Door Styles, Door Materials, and Finish Combinations
  • Stylish Full Overlay Design
  • Thousands of Cabinets and Accessories
  • Extensive Selection of Stains and Paints with Glaze and Finish Technique Options
  • You Draw It Program Changes Concepts Into Creations
  • Wood and Metal Drawer Options with Soft Close Drawer Slides
  • Modification Options for More Design Flexibility
  • Concealed Soft Close Door Hinges
  • Lifetime Limited Warranty

Explore all door styles and available finish options using our Aspire Door Explorer! Contact your local Wellborn Cabinet dealer to find out more.

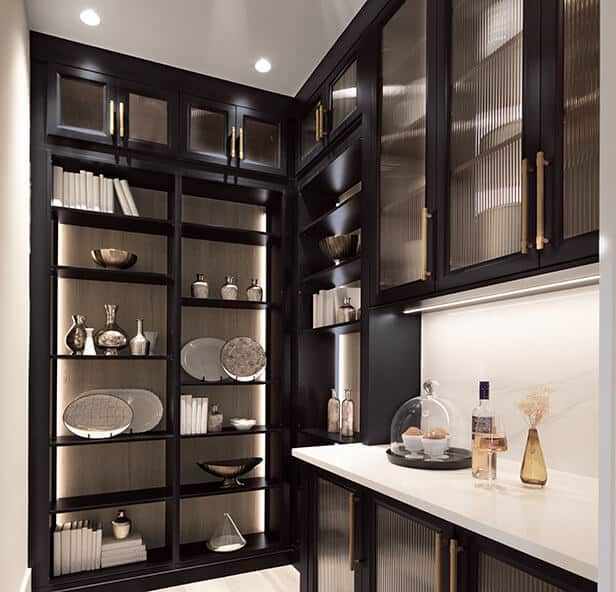

P120 Aspire Content Image

Wood Door Collection Standard Cabinet Construction

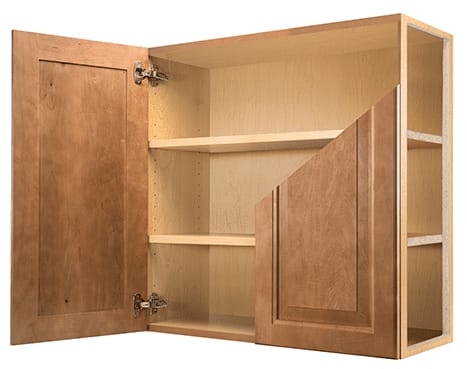

P98 AS1
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.

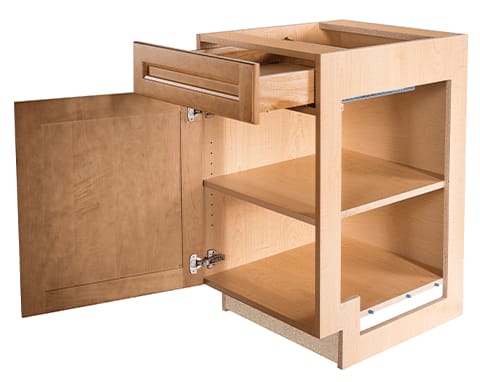

P99 AS1
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Front Rails

3/4" x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish.
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Drawer Box

5/8" Thick solid natural hardwood drawer sides, front and back with dovetail construction.

Drawer Bottom

3/16" Thick natural maple laminated plywood drawer bottom.

Drawer Slides

Full extension undermount drawer slides featuring soft close.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4" H Unfinished furniture board. 3 3/8"D x 4 1/2"H Toe kick cut out.
P123 Aspire Wood Drawer
APC - All Plywood Construction (Optional Upgrade)

Plywood is ¾” thick.

  • Cabinet interior and exterior is natural maple standard
    • Specify finished ends for all exposed ends
    • All end panels will be vertical grain
  • Cabinet will have coordinated front edge banded to reflect exterior (front) finish

Wellcore MDF Door Collection Standard Cabinet Construction

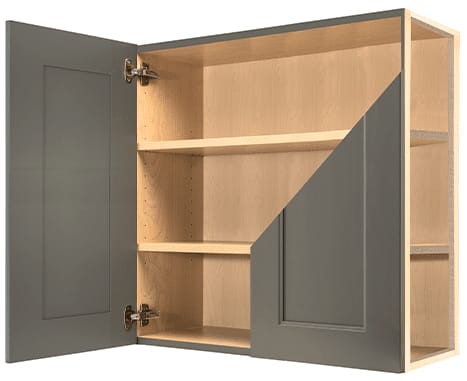

P124 W1
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.

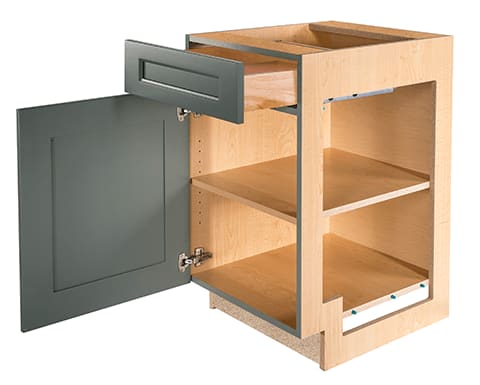

P125 W1
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Front Rails

3/4" x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish.
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Drawer Box

5/8" Thick solid natural hardwood drawer sides, front and back with dovetail construction.

Drawer Bottom

3/16" Thick natural maple laminated plywood drawer bottom.

Drawer Slides

Full extension undermount drawer slides featuring soft close.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4" H Unfinished furniture board. 3 3/8"D x 4 1/2"H Toe kick cut out.

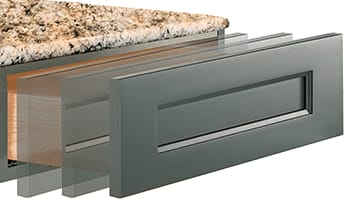

P126 Wellcore MDF Drawer
APC - All Plywood Construction (Optional Upgrade)

Plywood is ¾” thick.

  • Cabinet interior and exterior is natural maple standard
    • Specify finished ends for all exposed ends
    • All end panels will be vertical grain
  • Cabinet will have coordinated front edge banded to reflect exterior (front) finish

Wood and Wellcore MDF Door Collections

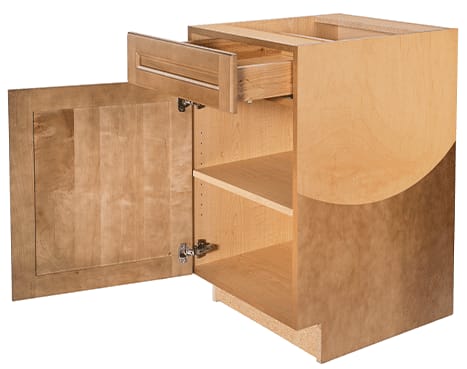

P127 W1
Edge banding coordinates with door fronts
All wood & WellCore MDF cabinets come standard with natural maple laminate end panels. (Exposed ends must be specified to receive finished matching end)
Finished matching end option
All Wood & Wellcore MDF cabinets come standard with natural maple laminate interior.

Brilliant Door Collection Standard Cabinet Construction

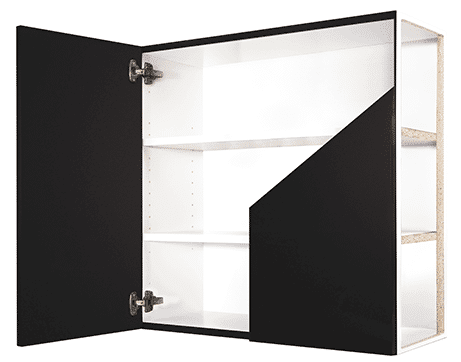

P128 B1
End Panels

3/4" Thick white (with options for natural maple or gray thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Back

3/16" Thick printed MDF hardboard in white (with options for natural maple or gray). Hanging Rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Shelves

3/4" Thick thermofused white (with options for natural maple or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
Tops and Bottoms

3/4" Thick thermofused melamine laminated furniture board in white (with options for natural maple or gray), with coordinated front edge banded to reflect exterior (front) finish
6-way adjustable concealed clip on hinge with integrated soft close

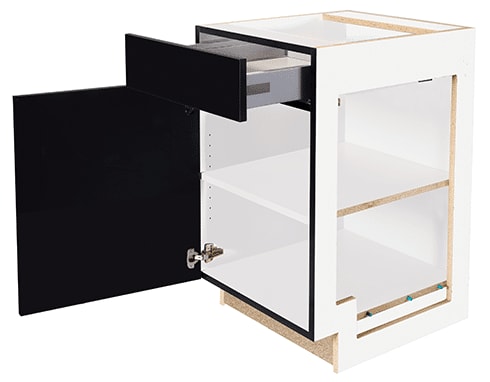

P129 B1
Back

3/16" Thick printed MDF hardboard in white (with options for natural maple or gray). Hanging Rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick white (with options for natural maple or gray thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused white (with options for natural maple or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Toe Kick

3/4" x 4"H Unfinished furniture board. 3 3/8"D x 4 1/2"H toe kick cut out.
Front Rails

3/4"x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish
Deluxe Metal Drawer Box

A double walled, gray, contoured metal sided drawer.

Drawer Bottom

Drawer bottoms and backs will be 5/8" melamine that matches the chosen interior color.

Drawer Slides

Full extension undermount drawer slides featuring soft close
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board

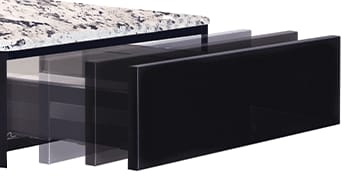

P130 B1
APC - All Plywood Construction (Optional Upgrade)

Plywood is ¾” thick.

  • Cabinet interior and exterior is natural maple standard
    • Specify finished ends for all exposed ends
    • All end panels will be vertical grain
  • Cabinet will have coordinated front edge banded to reflect exterior (front) finish

Brilliant Door Collection

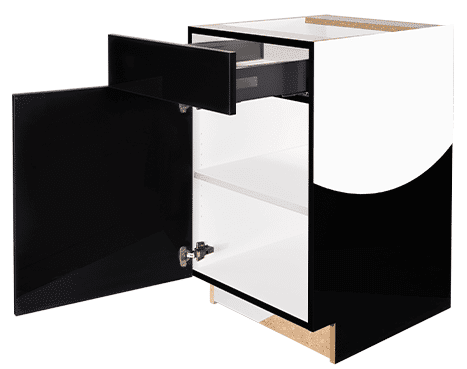

P131 Brilliant Door Collection
All Brilliant cabinets come standard with white laminate interior.
All Brilliant cabinets come standard with white laminate end panels. (Exposed ends must be specified to receive finished matching end.)
Finished matching end option
Edge banding coordinates with door fronts

Regal Door Collection Standard Cabinet Construction

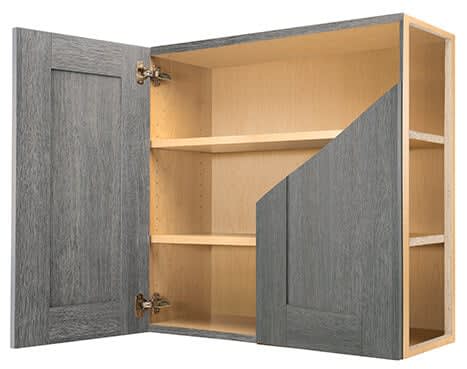

P132 R1
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Hinges

6-way adjustable concealed clip on hinge with integrated soft close

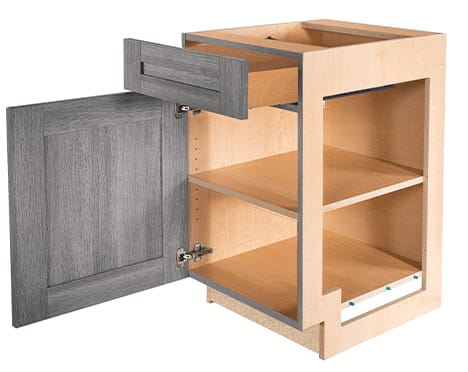

P133 R1
Toe Kick

3/4" x 4" H Unfinished furniture board. 3 3/8"D x 4 1/2"H Toe kick cut out.
Tops & Bottoms

3/4" Thick thermofused melamine laminated furniture board in natural maple (with options for white or gray), with coordinated front edge banded to reflect exterior (front) finish
Front Rails

3/4" x 4" thermofused melamine laminated furniture board. Coordinated front edge banded to reflect exterior (front) finish.
Drawer Box

5/8" Thick solid natural hardwood drawer sides, front and back with dovetail construction.

Drawer Bottom

3/16" Thick natural maple laminated plywood drawer bottom.

Drawer Slides

Full extension undermount drawer slides featuring soft close.
Stretcher Rails

3/4" x 4" thermofused melamine laminated furniture board
Hinges

6-way adjustable concealed clip on hinge with integrated soft close
Back

3/16" Thick printed MDF hardboard in natural maple (with options for white or gray). Hanging rails are concealed behind the back at the top and bottom of the cabinet interior and are 3/4" x 4" furniture board.
End Panels

3/4" Thick natural maple (with options for white or gray) thermofused melamine laminated interior and exterior furniture board, coordinated front edge banded to reflect exterior (front) finish. Specify finished ends for all exposed end panels. All end panels will be vertically grained.
Shelves

3/4" Thick thermofused natural maple (with options for white or gray) melamine laminated two sides furniture board adjustable full depth shelves, front edge banded to match cabinet interior.

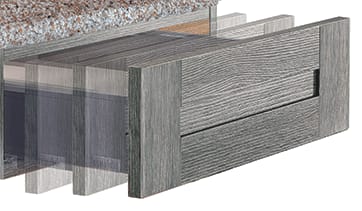

P134 R1
APC - All Plywood Construction (Optional Upgrade)

Plywood is ¾” thick.

  • Cabinet interior and exterior is natural maple standard
    • Specify finished ends for all exposed ends
    • All end panels will be vertical grain
  • Cabinet will have coordinated front edge banded to reflect exterior (front) finish

Regal Door Collection

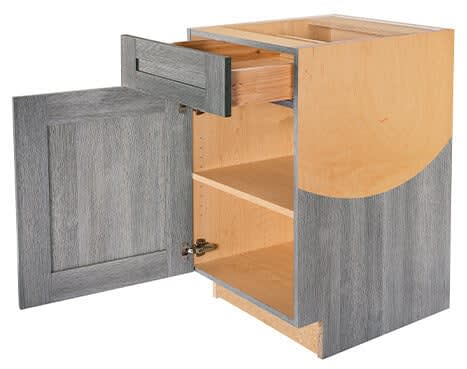

P135 Regal Door Collection
Edge banding coordinates with door fronts.
All Regal cabinets come standard with natural maple laminate end panels. (Exposed ends must be specified to receive finished matching end.)
Finished matching end option
All Regal cabinets come standard with natural maple laminate interior.
